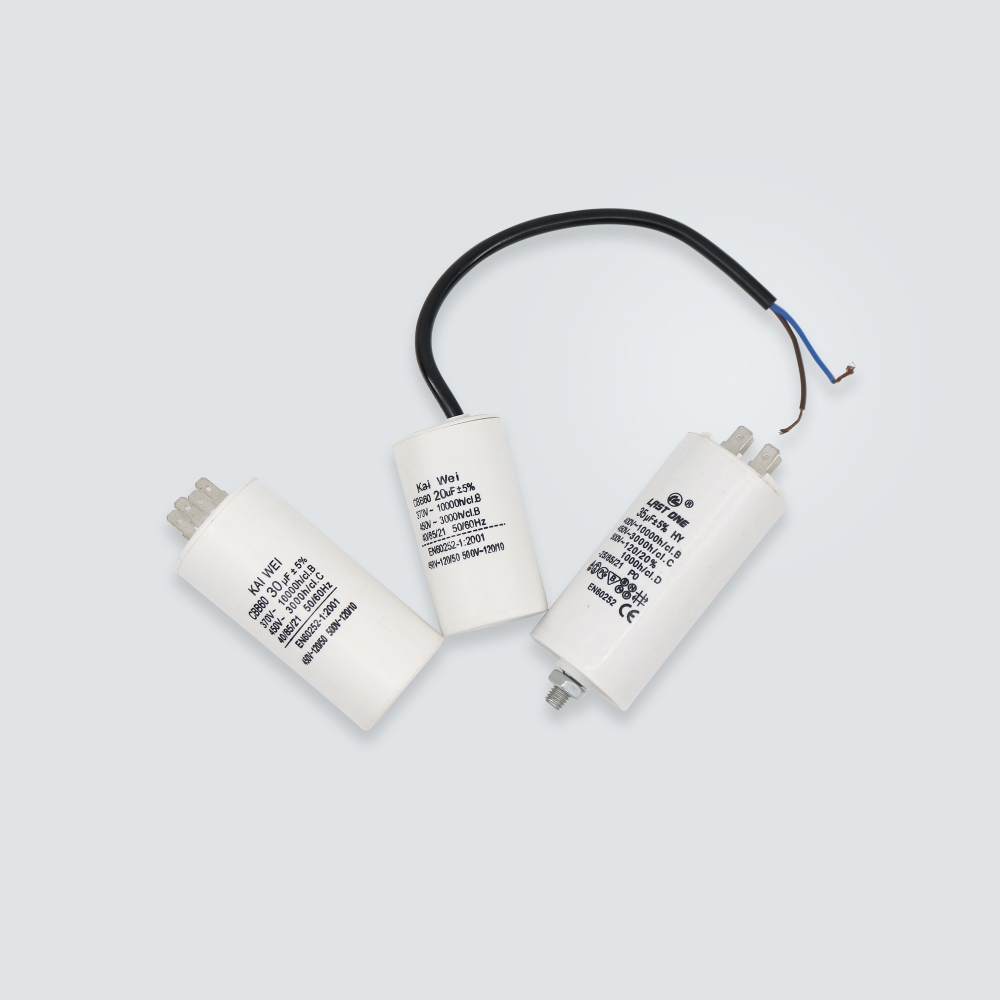

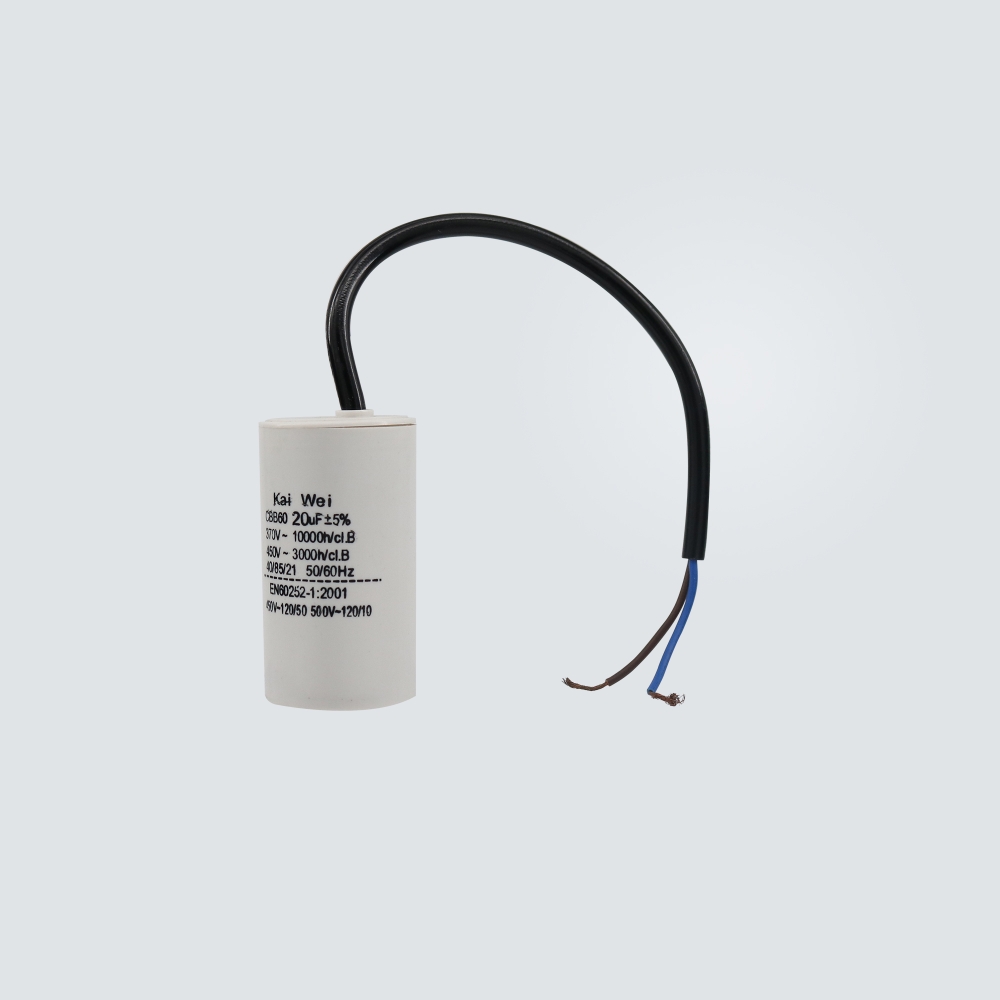

CBB60
WM
Features and use
Apply to 50/60Hz a.c single-phase motor for starting and running esp. It is widely used as the start-up and running capacitor that is special for micro water pump, cleaning machine washing machine. and single-phase water pump motor
Products character
1. Plastic cylinder out-shell are fireproof, sealed by resin with lead-out structure
2 Small, light and good self-healing
3. Make the use of ZnAI edge thickening metallized film, can bear impact current
Technique Data
| Technology standard | GB/T3667-97 |
| Operating temperatuce | -20℃~+70℃ |
| Operating frequency | 5OHz-6OHz |
| Endurable voltage (T-T) | 1.75Un |
| Tangent of loss angle | tg δ≤0.004(1KHz) |
| Capacitance deviation | ±5% |
Specifications
| Capacity（μF） | 450VAC | 250VAC | ||
| Diameter | Height | Diameter | Height | |
| 3-4 | 25 | 57 | ||
| 4-5 | 30 | 70 | ||
| 5-6 | 35 | 55 | ||
| 6-8 | 35 | 60 | ||
| 7-10 | 35 | 68 | ||
| 8-12 | 35 | 73 | 25 | 57 |
| 9-16 | 40 | 70 | 30 | 70 |
| 10-20 | 40 | 95 | 35 | 55 |
| 10-15 | 42 | 60 | 35 | 60 |
| 10-18 | 42 | 70 | 35 | 68 |
| 15-20 | 42 | 80 | 35 | 73 |
| 16-25 | 42 | 90 | 40 | 70 |
| 20-25 | 45 | 70 | 42 | 60 |
| 25-30 | 45 | 92 | 42 | 70 |
| 30-40 | 50 | 92 | 42 | 80 |
| 40-50 | 50 | 100 | 42 | 90 |
| 45-50 | 50 | 116 | 45 | 92 |
| 50-60 | 60 | 100 | 45 | 92 |
| 60-80 | 60 | 130 | 50 | 92 |
| 80-100 | 65 | 130 | 50 | 100 |
| 100-120 | 60 | 100 | ||
Factory
 Capacitor Workshop - 1 |  Capacitor Workshop - 2 |
 Capacitor Packing |  Capacitor Finished products |
Certificate
 |  |  |
 |  |  |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a manufacturer.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xingtai City, closed to Beijing You can fly to Beijing or Shijiazhuang airport directly. All our clients are warmly welcome to visit us!
3. Q: What is the payment term?
A: We accept T/T, Western Union, Alibaba as your convinence.
4. Q: What is the delivery term?
A: If we have stock, we can ship within three working days. If there is no stock, it will take about a week to deliver.
5. Q: Could you offer sample?
A: Yes, we can offer you free sample.
