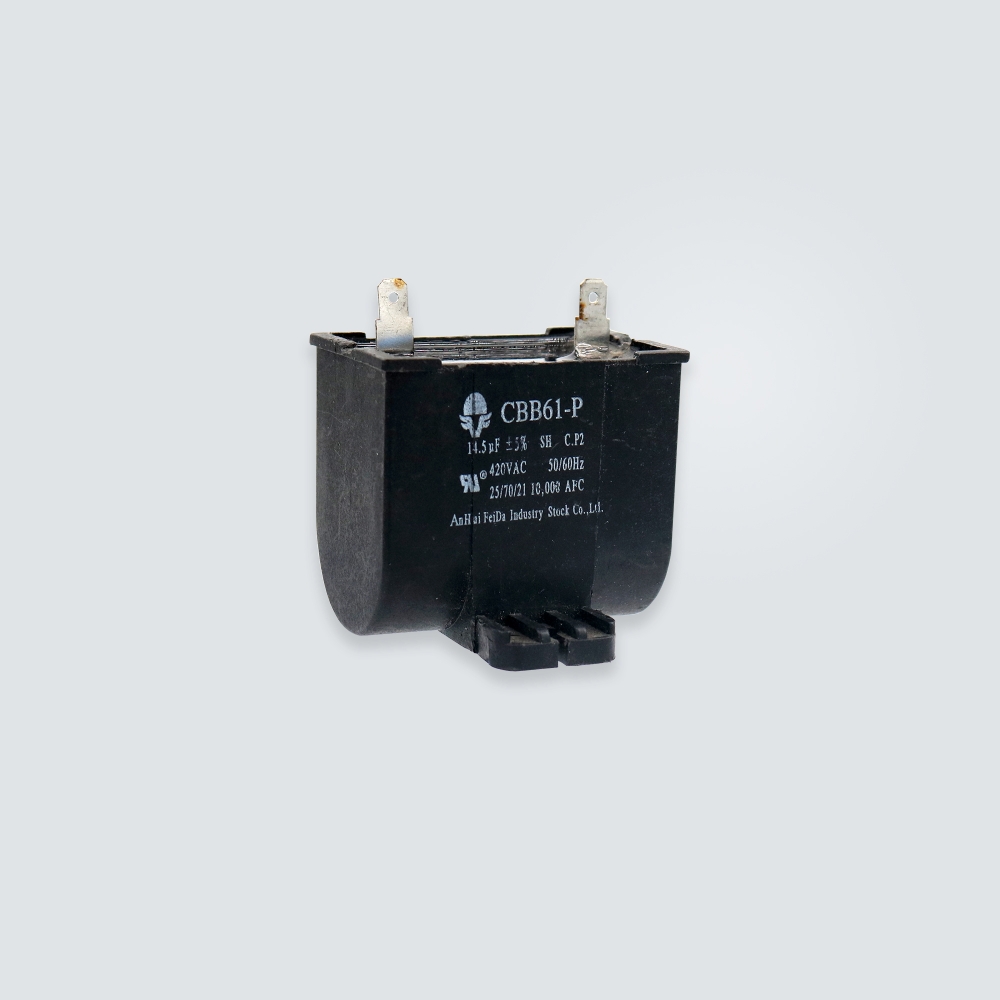

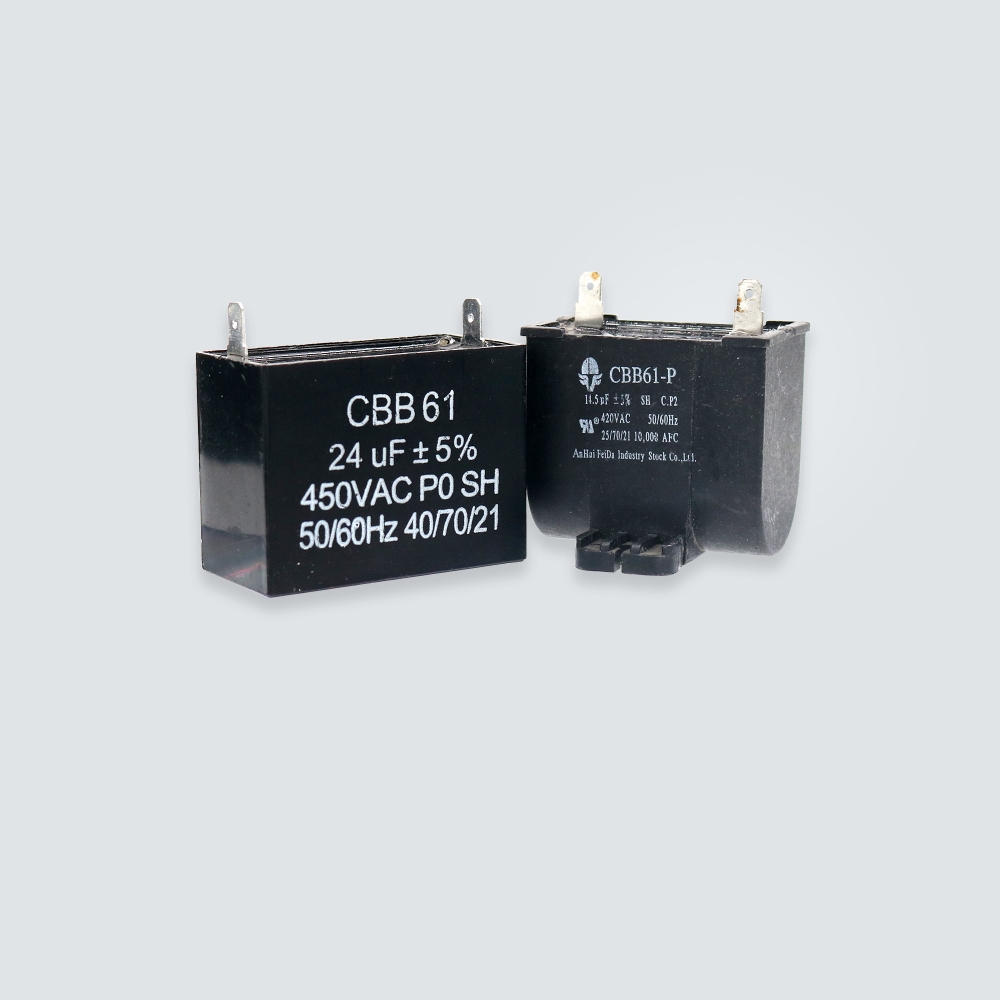

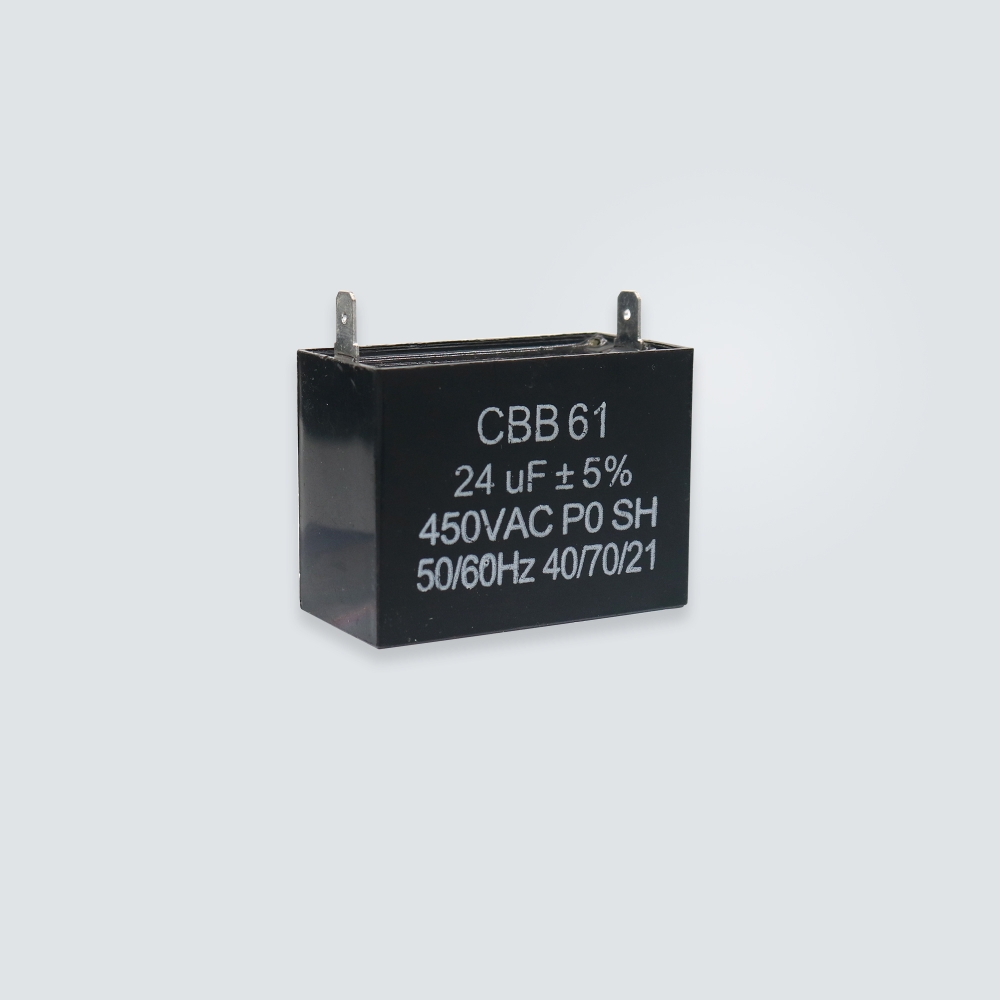

CBB61
WM
Features and use
Features and use: All ot its perlormance indexes reach the requirements at IEC252 cnteflon With its good self-healing characteristic, long life-span and high prnpottionahty. it is widely used as the start-up and running capacitor that is specisl for elecinc appliances such as electflc fanners. venhiators and exhaust fanners.
Technique Data
| Technical features | climale types:40/70/21 |
| Capacity volume variance | ± 5%. ± 10% |
| Testing voltage | Between leading-out ends:1 75Un. 10S no breakdown Between leading-out end and shell: 2200VAC 10S no breakdown |
| Insulation resistance | between leading-out ends: 3000MΩ. uF |
| Between leading-out end and shell | 1000MΩ |
| Loss tangent | tg δ≤0.002 |
Specifications
| Capacity（μF） | 450VAC | 250VAC | ||||
| Length | Width | Height | Length | Width | Height | |
| 1.0-1.5 | 37 | 15 | 26 | |||
| 1.2-4.0 | 47 | 18 | 34 | 37 | 15 | 26 |
| 5.0-6.0 | 50 | 23 | 40 | 47 | 18 | 34 |
| 6-10 | 48 | 28 | 34 | 50 | 23 | 40 |
| 10-15 | 60 | 28 | 42 | 48 | 28 | 34 |
| 15-25 | 60 | 39 | 50 | 60 | 28 | 42 |
| 25-40 | 60 | 39 | 50 | |||
Factory
 Capacitor Workshop - 1 |  Capacitor Workshop - 2 |
 Capacitor Packing |  Capacitor Finished products |
Certificate
 |  |  |
 |  |  |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a manufacturer.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xingtai City, closed to Beijing You can fly to Beijing or Shijiazhuang airport directly. All our clients are warmly welcome to visit us!
3. Q: What is the payment term?
A: We accept T/T, Western Union, Alibaba as your convinence.
4. Q: What is the delivery term?
A: If we have stock, we can ship within three working days. If there is no stock, it will take about a week to deliver.
5. Q: Could you offer sample?
A: Yes, we can offer you free sample.
