120
WM

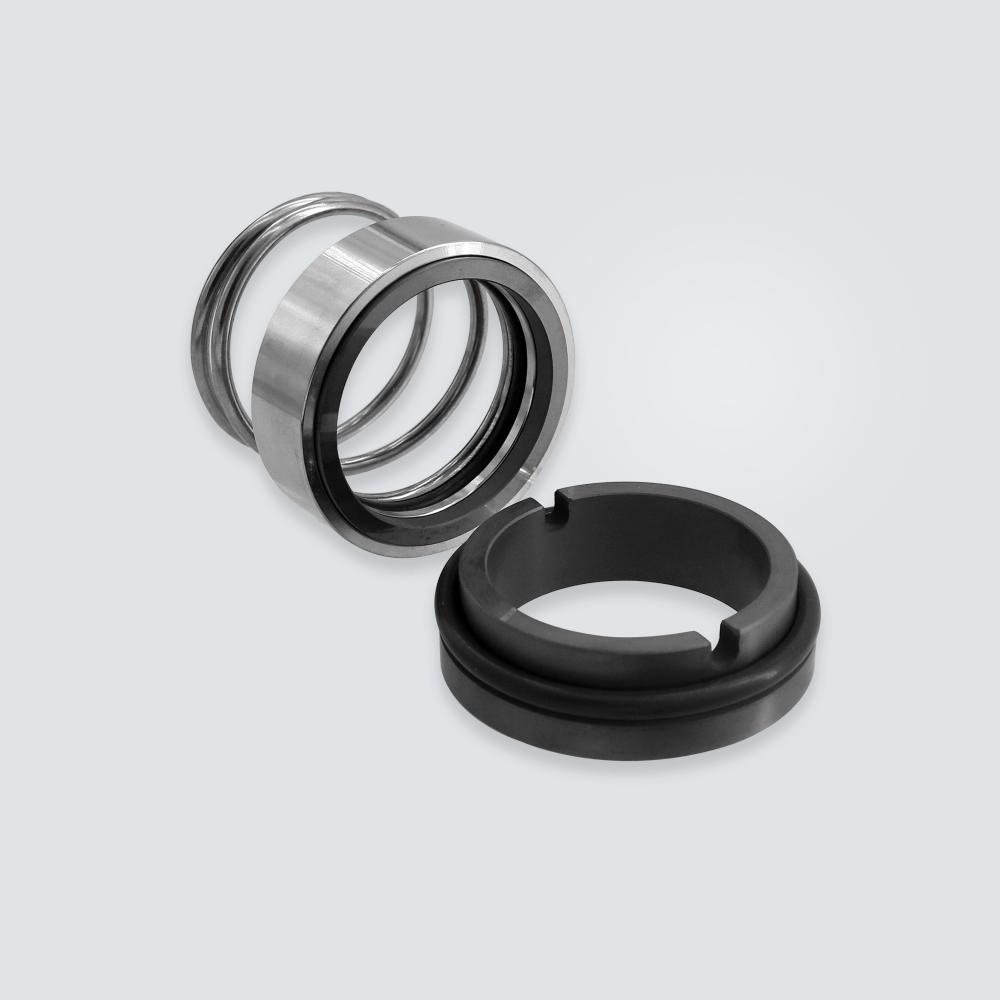

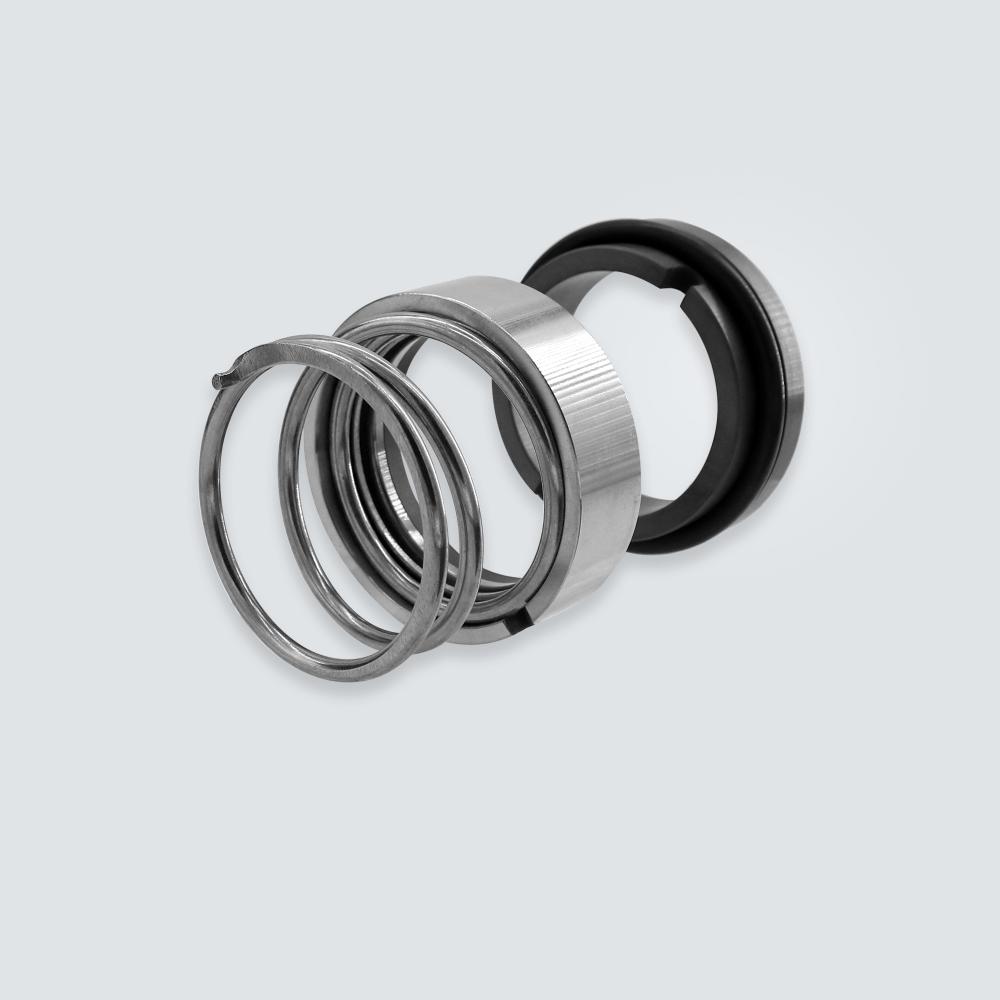

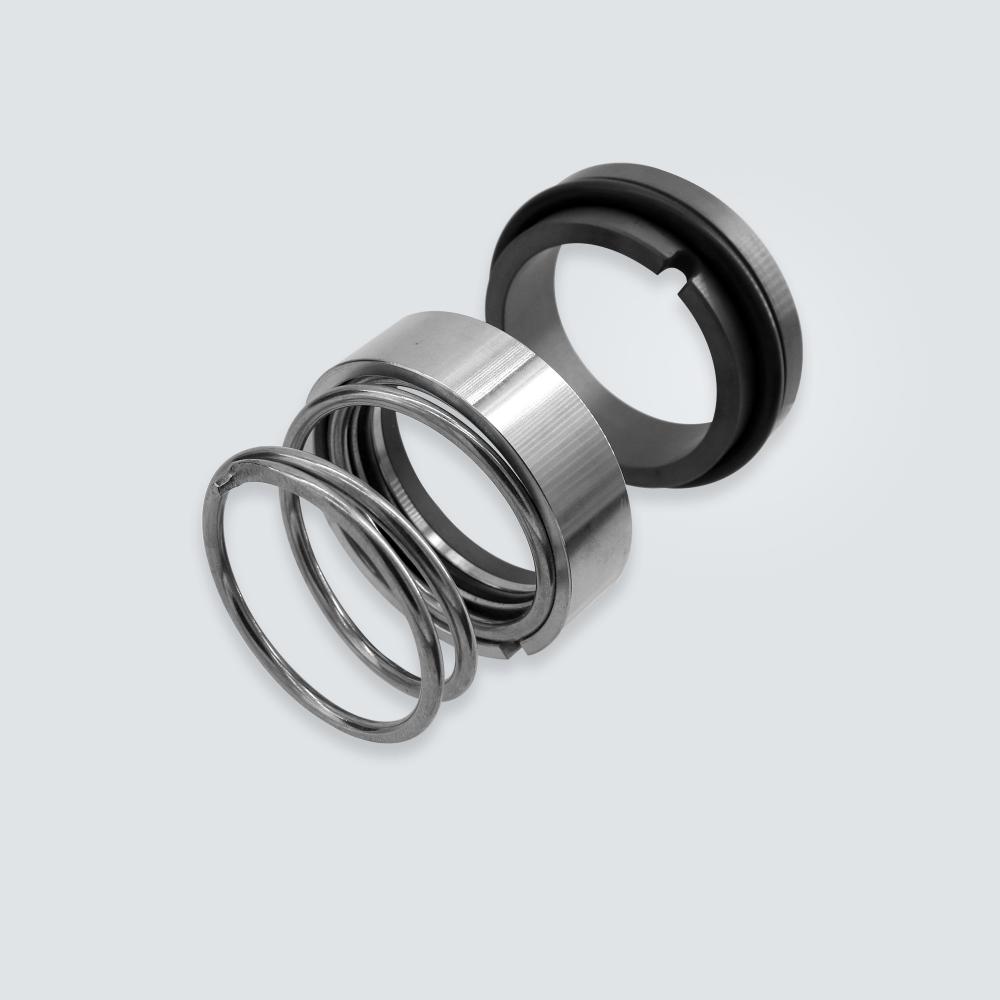

Product Description
Applications: Used in different pumps, mixers and other rotating equipments, the products are widely used in various centrifugal pumps, chemical pumps and various anticorrosive pumps.
| Model Number | WM120 |
| Specification | 8~55mm |
| Pressure | ≤1.0Mpa |
| Temperature | -40℃~200℃ |
| Linear speed | ≤ 10m/s |
| profile | single face |
Product Number
| Model | D1 | D32 | D31 | D7 | L | L3 | L4 | Ds | Ls | D2 | D71 | L41 |
| -8 | 8 | 18 | - | 21 | 19 | 13.5 | 5.5 | Ds | Ls | D2 | D71 | L41 |
| -9 | 9 | 20 | - | 21/22 | 20 | 15 | 5 | 1 | 3 | 9 | - | - |
| -10 | 10 | 20 | - | 22 | 20/21 | 15/16 | 5 | 1 | 3 | 10 | - | - |
| -12 | 12 | 25.5 | 22.5 | 23/24/26 | 20/24/25 | 15/19/20 | 5 | 1.1 | 3 | 11.1 | 19 | 8 |
| -12B | 12 | 23 | 22.5 | 23/24/26 | 22 | 17 | 5 | 1.2 | 4.5 | 13.2 | 25.4 | 8 |
| -14 | 14 | 27.5 | 25 | 25/26/28/30 | 22/24/25 | 17/19/20 | 5 | 1.2 | 4.5 | 13.2 | 21.5 | 7 |
| -15 | 15 | 29 | 25 | 28/30 | 25 | 20 | 5 | 1.4 | 4.5 | 15.4 | 30 | 8.5 |
| -16 | 16 | 30 | 26 | 28/30 | 25 | 19/20 | 5/6. | 1.4 | 4.5 | 16.4 | - | - |
| -16S | 16 | 27 | 26 | 28/30 | 25 | 19/20 | 5/6. | 1.5 | 4.5 | 17.5 | 31.8 | 10.3 |
| -17 | 17 | 31 | 29.5 | 33/34/35 | 25 | 20 | 5 | 1.5 | 4.5 | 17.5 | 28 | 8.5 |
| -18 | 18 | 32 | 30.5 | 33/34/35 | 25 | 20 | 5 | 1.8 | 4.5 | 18.8 | - | - |
| -19 | 19 | 36 | 33 | 35/36 | 25/26.5 | 20/21.5 | 5 | 1.8 | 4.5 | 19.8 | 35 | 8.5 |
| -20 | 20 | 36 | 34 | 35/36 | 25 | 17.5/20 | 5/7.5 | 1.8 | 4.5 | 20.8 | 35 | 8.5 |
| -22 | 22 | 36 | 36 | 37/38 | 28 | 21.5 | 7.5 | 2 | 4.5 | 22 | 35/36 | 8.5 |
| -24 | 24 | 38 | 38 | 40/41 | 28/32/37 | 20/24/29 | 8 | 2.2 | 4.5 | 24.2 | 35 | 8.5 |
| -25 | 25 | 41.5 | 39 | 40/41 | 34/37 | 26/29 | 8 | 2.5 | 4.5 | 26.5 | 40/41 | 11 |
| -30 | 30 | 47 | 44 | 45/46 | 35/37 | 27.5/29.5 | 7.5 | 2.5 | 4.5 | 27.5 | 40/41 | 11 |
| -32 | 32 | 50 | 46 | 48 | 35 | 27.5/29.5 | 7.5 | 2.5 | 5 | 32.5 | 45 | 11 |
| -35 | 35 | 53 | 49 | 50/51 | 37 | 29.5 | 7.5 | 2.5 | 5 | 34.5 | 50.8 | 12.5 |
| -40 | 40 | 58 | 56 | 58/60 | 40 | 31 | 9 | 3.5 | 6 | 38.5 | 50.8 | 12.5 |
| -45 | 45 | - | 61 | 65 | 40 | 31 | 9 | 3.5 | 6 | 43.5 | 60 | 12.5 |
| -50 | 50 | - | 66 | 70 | 45 | 35.5 | 9.5 | 3.5 | 6 | 48.5 | 65 | 12.5 |
| -55 | 55 | - | 71 | 75 | 45 | 34 | 11 | 4 | 6 | 54 | 70 | 13.5 |
| 4 | 6 | 59 | 75 |
Product Specifications
WM 120 Mechanical-Product Specifications
Factory
 Warehouse |  Installation workshop |
 Product packaging |  Ceramic grinding |
Certificate
 |  |  |
 |  |  |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a manufacturer.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xingtai City, closed to Beijing You can fly to Beijing or Shijiazhuang airport directly. All our clients are warmly welcome to visit us!
3. Q: What is the payment term?
A: We accept T/T, Western Union, Alibaba as your convinence.
4. Q: What is the delivery term?
A: If we have stock, we can ship within three working days. If there is no stock, it will take about a week to deliver.
5. Q: Could you offer sample?
A: Yes, we can offer you free sample.
