208
WM
Product Description
Used in the submersible pumps. Materials should be selected according to operation condition.
| Style | Mechanical seal |
| Standarsd or Nostandard | Standard |
| Temperature | -40℃~125℃ |
| Pressure | ≤0.6Mpa |
| Speeds | ≤ 5m/sec |
| Rotary ring | CARBON |
| Stationary ring | CERAMIC |
| Secondary seal | NBR |
| Spring&Other parts | SUS304 |
| OEM | yes |
| Custom products | Accept custom |
| Sample | yes |
Product Number
| model | D1 | D7 | L | L3 | L4 |
| WM208-10 | 10 | 22 | 30 | 20 | 5 |
| WM208-12 | 12 | 23/24/26 | 30/32/34/35/38/40 | 22/25/28/30 | 4/5 |
| WM208-14 | 14 | 26/28/30 | 35/36/38/40/41 | 25/26/28/30/31 | 5 |
| WM208-15 | 15 | 27/28 | 38 | 28 | 5 |
| WM208-16 | 16 | 27/28/30 | 38/40/41/42/44 | 28/30/31032/34 | 5 |
| WM208-17 | 17 | 33/35 | 38/40/42/45 | 28/30/32/35 | 5 |
| WM208-18 | 18 | 33/35 | 38/42 | 28/32 | 5 |
| WM208-20 | 20 | 35/36 | 38/40/42/45 | 28/30/32/35 | 5 |
| WM208-22 | 22 | 36/37 | 40/42 | 30 | 5/6. |
| WM208-24 | 24 | 40/41 | 48/51/54 | 35/36/38 | 6/8. |
| WM208-25 | 25 | 40/41 | 48/51/54 | 35/36/38 | 6/8. |
| WM208-28 | 28 | 45/46 | 51 | 36 | 7.5 |
| WM208-30 | 30 | 45/46 | 51 | 36 | 7.5 |
| WM208-35 | 35 | 50 | 51 | 35 | 8 |
| WM208-40 | 40 | 58 | 58/60/61 | 40/42/43 | 9 |
| WM208-45 | 45 | 63 | 61 | 44 | 8.5 |
| WM208-50 | 50 | 70 | 69 | 50 | 9.5 |
| WM208-55 | 55 | 75 | 70/78 | 51/59 | 9.5 |
Product Specifications

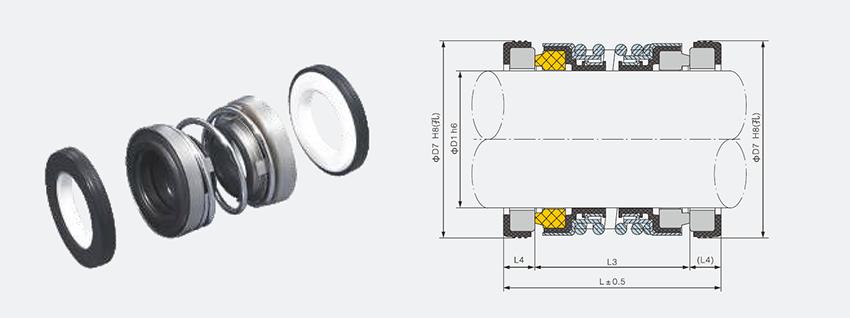

WM 208 Mechanical-Product Specifications
Factory
 Warehouse |  Installation workshop |
 Product packaging |  Ceramic grinding |
Certificate
 |  |  |
 |  |  |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a manufacturer.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xingtai City, closed to Beijing You can fly to Beijing or Shijiazhuang airport directly. All our clients are warmly welcome to visit us!
3. Q: What is the payment term?
A: We accept T/T, Western Union, Alibaba as your convinence.
4. Q: What is the delivery term?
A: If we have stock, we can ship within three working days. If there is no stock, it will take about a week to deliver.
5. Q: Could you offer sample?
A: Yes, we can offer you free sample.
