2100
WM
Product Description

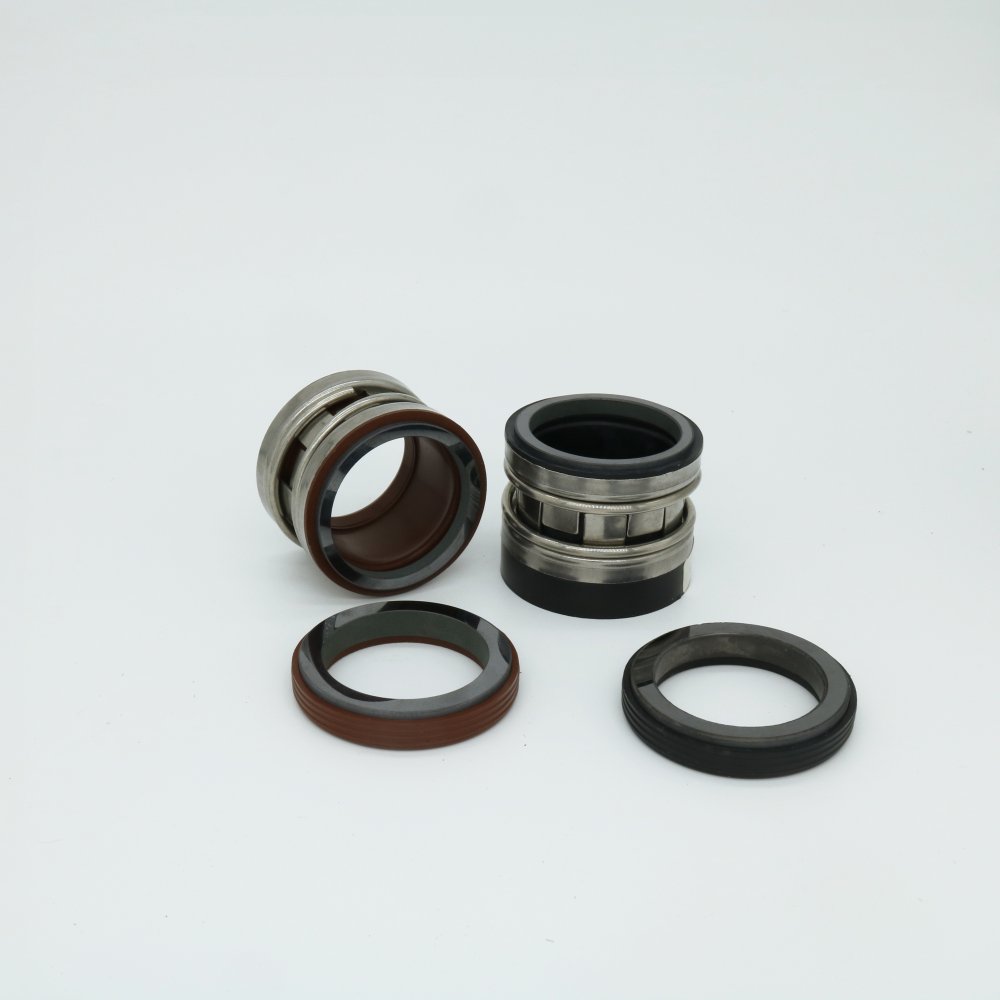

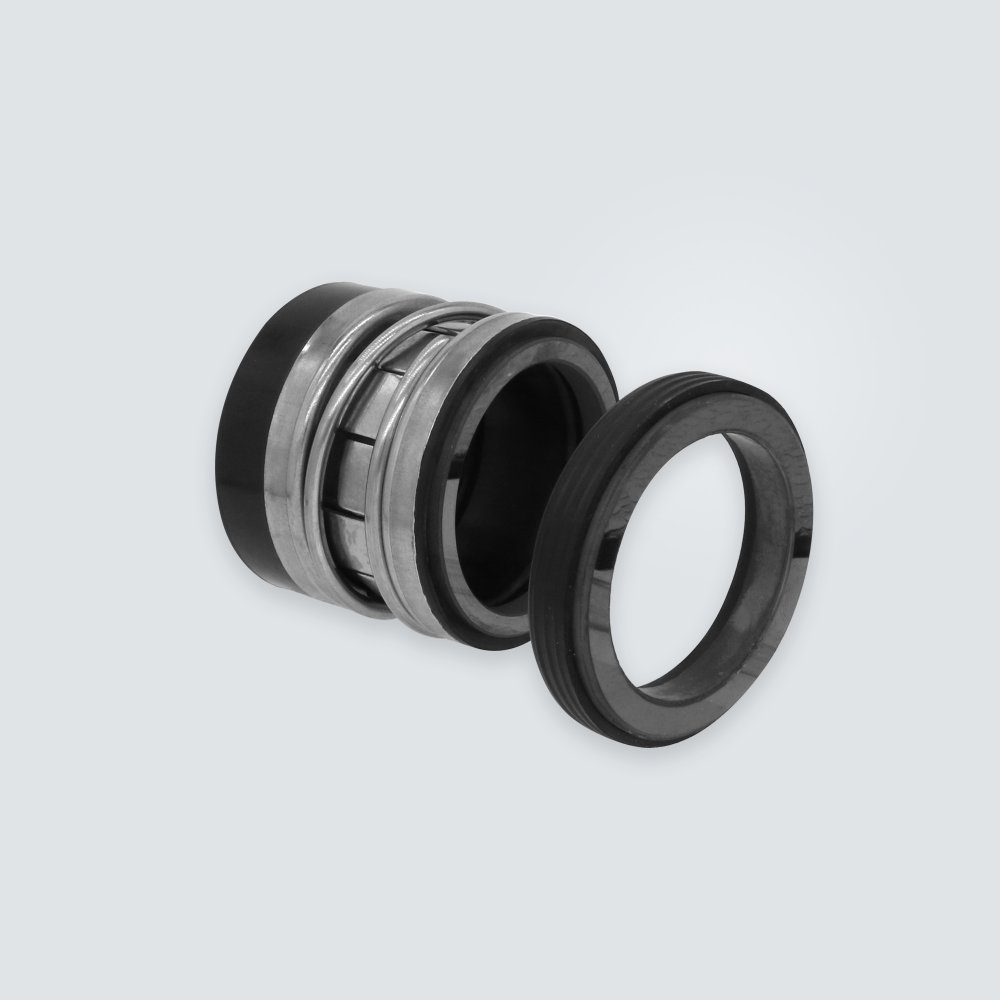

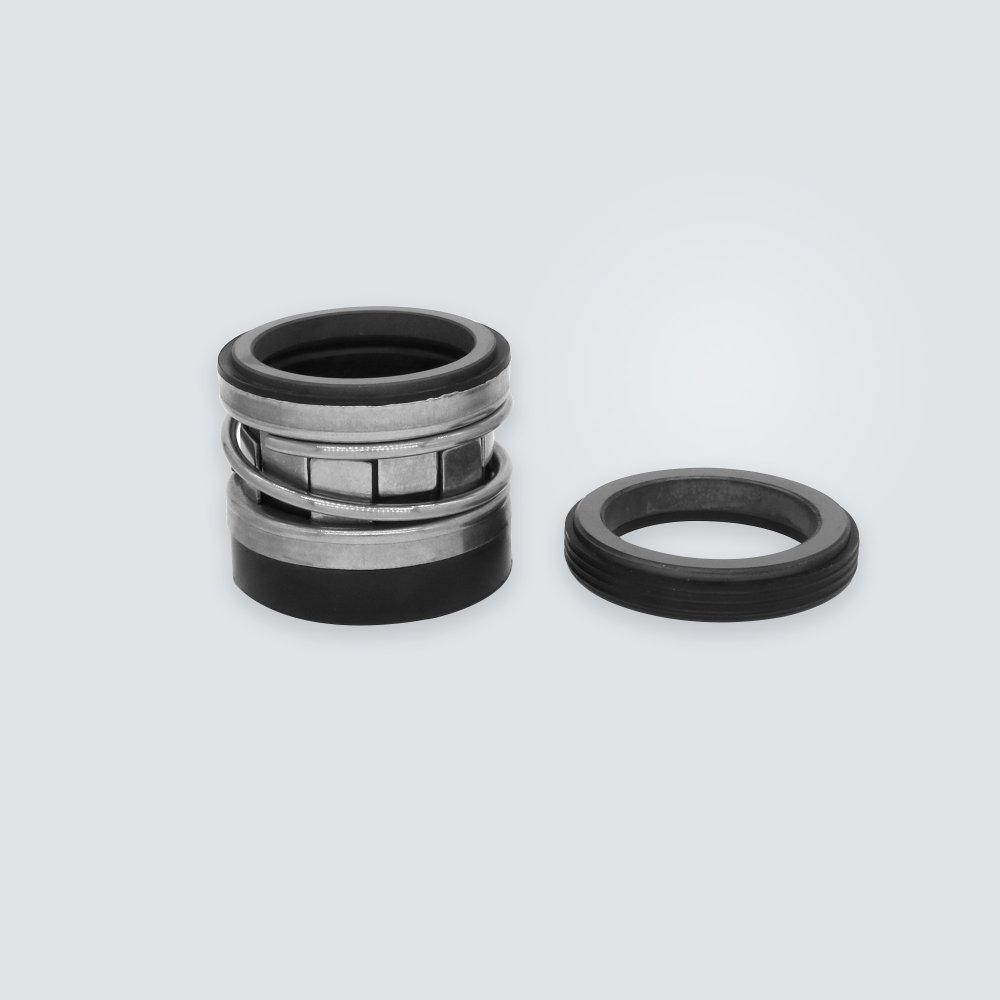

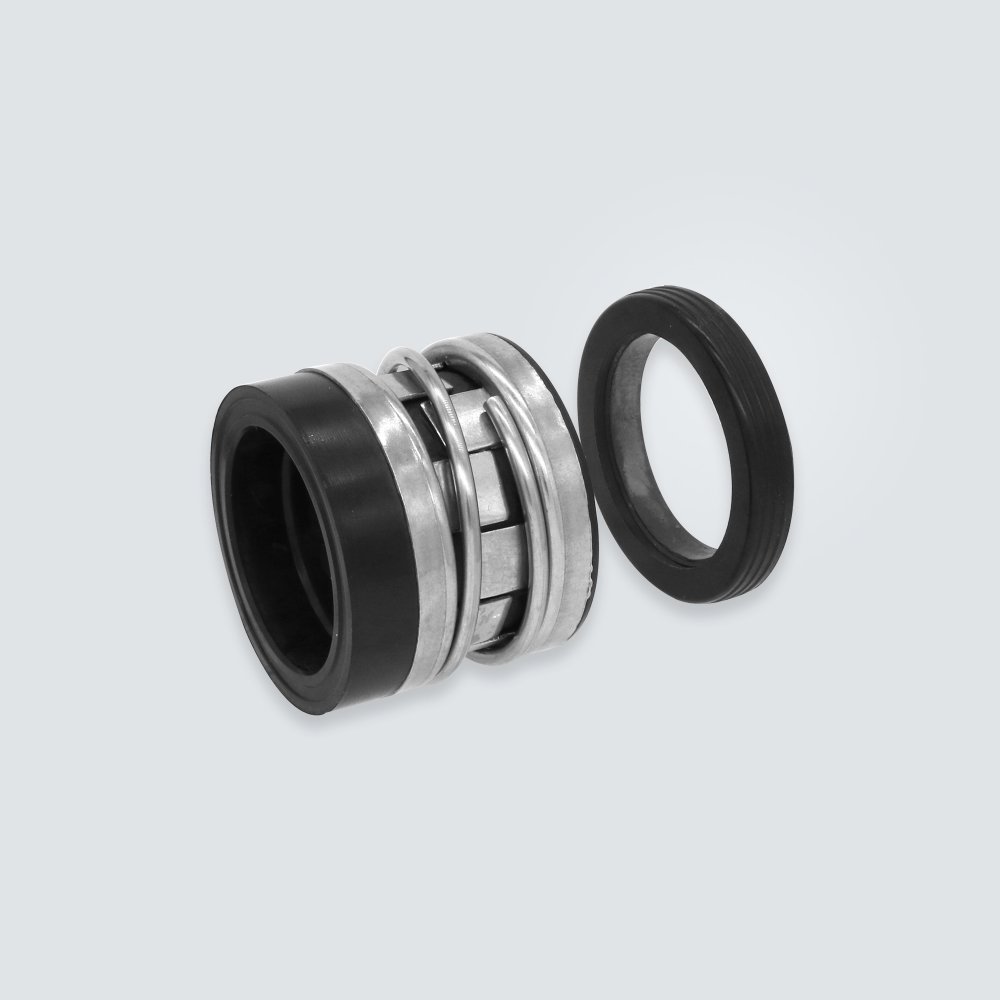

Mechanical seal 2100, replacing AESSEAL B05, John Crane 2100 and Flowserve 140
| Style | Mechanical seal |
| Pressure | ≤2Mpa |
| Speeds | ≤ 13m/ sec |
| Standarsd or Nostandard | Standard |
| Temperature | -40℃~150℃ |
| Spring&Other parts | SUS304 |
| Rotary ring | SIC |
| Stationary ring | SIC |
| Secondary seal | NBR |
| OEM | yes |
| Custom products | Accept custom |
| Sample | yes |
Product Number
| d1 Shaft size | d3 | L3 | L3K | L3N | D7 | L4 | L28 |
| 10 | 20 | 15 | 27.5 | 35 | 21 | 5 | 6.6 |
| 12 | 22 | 15 | 26.5 | 34 | 23 | 6 | 6.6 |
| 14 | 24 | 15 | 29 | 34 | 25 | 6 | 6.6 |
| 15 | 25 | 15 | 29 | 34 | 26 | 6 | - |
| 16 | 26 | 15 | 29 | 34 | 27 | 6 | 6.6 |
| 18 | 32 | 20 | 31.5 | 39 | 33 | 6 | 7.5 |
| 20 | 34 | 20 | 31.5 | 39 | 35 | 6 | 7.5 |
| 22 | 36 | 20 | 31.5 | 39 | 37 | 6 | 7.5 |
| 24 | 38 | 20 | 34 | 44 | 39 | 6 | 7.5 |
| 25 | 39 | 20 | 34 | 44 | 40 | 6 | 7.5 |
| 28 | 42 | 26 | 36.5 | 44 | 43 | 6 | 7.5 |
| 30 | 44 | 26 | 35.5 | 43 | 45 | 7 | 7.5 |
| 32 | 46 | 26 | 35.5 | 48 | 48 | 7 | 7.5 |
| 33 | 47 | 26 | 35.5 | 48 | 48 | 7 | 7.5 |
| 35 | 49 | 26 | 34.5 | 47 | 50 | 8 | 7.5 |
| 38 | 54 | 30 | 37 | 47 | 56 | 8 | 9 |
| 40 | 56 | 30 | 37 | 47 | 58 | 8 | 9 |
| 43 | 59 | 30 | 37 | 52 | 61 | 8 | 9 |
| 45 | 61 | 30 | 37 | 52 | 63 | 8 | 9 |
| 48 | 64 | 30 | 35 | 50 | 66 | 10 | 9 |
| 50 | 66 | 30 | 37.5 | 50 | 70 | 10 | 9.5 |
| 53 | 69 | 30 | 37.5 | 60 | 73 | 10 | 11 |
| 55 | 71 | 30 | 37.5 | 60 | 75 | 10 | 11 |
| 58 | 78 | 33 | 42.5 | 60 | 78 | 12 | 11 |
| 60 | 80 | 33 | 40.5 | 58 | 80 | 12 | 11 |
| 63 | 83 | 33 | 40.5 | 558 | 83 | 12 | 11 |
| 65 | 85 | 33 | 40.5 | 68 | 85 | 12 | 11 |
| 68 | 88 | 33 | 40.5 | 68 | 90 | 12 | 11.3 |
| 70 | 90 | 33 | 48 | 68 | 92 | 12 | 11.3 |
| 75 | 99 | 40 | 48 | 68 | 97 | 12 | 11.3 |
| 80 | 104 | 40 | 48 | 78 | 105 | 12 | 12 |
| 85 | 109 | 40 | 48 | 78 | 110 | 12 | 14 |
| 90 | 114 | 40 | 52.5 | 77.5 | 115 | 12.5 | 14 |
| 95 | 119 | 40 | 52.5 | 77.5 | 120 | 12.5 | 14 |
| 100 | 124 | 40 | 52.5 | 77.5 | 125 | 12.5 | 14 |
Product Specifications

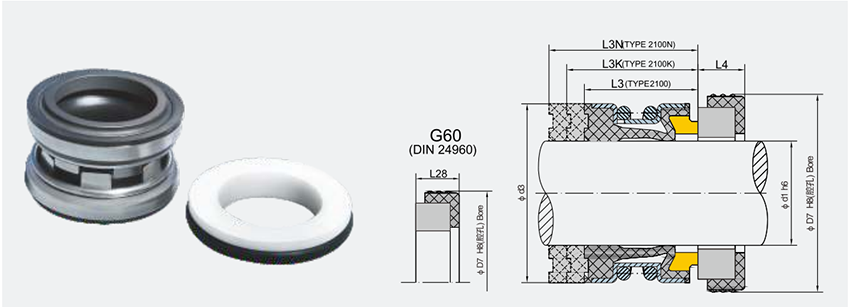

WM 2100 Mechanical-Product Specifications
Factory
 Warehouse |  Installation workshop |
 Product packaging |  Ceramic grinding |
Certificate
 |  |  |
 |  |  |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a manufacturer.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xingtai City, closed to Beijing You can fly to Beijing or Shijiazhuang airport directly. All our clients are warmly welcome to visit us!
3. Q: What is the payment term?
A: We accept T/T, Western Union, Alibaba as your convinence.
4. Q: What is the delivery term?
A: If we have stock, we can ship within three working days. If there is no stock, it will take about a week to deliver.
5. Q: Could you offer sample?
A: Yes, we can offer you free sample.
