551
WM
Product Description
Used in differend pumps,mixers and other rotating equipments which apply to oil,water and other weak corrosive solutions.Materials should be selected according to operation condition.
Materials should be selected according to operation condition.
| Style | Mechanical seal |
| Pressure | ≤1Mpa |
| Speeds | ≤ 10m/ sec |
| Standarsd or Nostandard | Standard |
| Temperature | -20℃~180℃ |
| Spring&Other parts | SUS304 |
| Rotary ring | SUS304/SIC/TC |
| Stationary ring | CARBON/SIC/TC |
| Secondary seal | V |
| OEM | yes |
| Custom products | Accept custom |
| Sample | yes |
Product Number
| Seal size D(mm) | D3 | BT | ||
| D7 | L1 | L3 | ||
| 8 | 18 | 17.1 | 20.5 | 5.5 |
| 10 | 19 | 18.1 | 20.5 | 5.5 |
| 11 | 20 | 20.6 | 23.5 | 5.5 |
| 12 | 21 | 20.6 | 23.5 | 5.5 |
| 13 | 22 | 23.1 | 28 | 6 |
| 14 | 23 | 23.1 | 28 | 6 |
| 15 | 24 | 26.9 | 29 | 7 |
| 16 | 26 | 26.9 | 30 | 7 |
| 17 | 26 | 26.9 | 30 | 7 |
| 18 | 29 | 30.9 | 32 | 8 |
| 19 | 31 | 30.9 | 33 | 8 |
| 20 | 31 | 30.9 | 33 | 8 |
| 22 | 33 | 35.4 | 33 | 8 |
| 23 | 36 | 35.4 | 35 | 8 |
| 24 | 35 | 35.4 | 35 | 8 |
| 25 | 36 | 38.2 | 35 | 8.5 |
| 26 | 37 | 38.2 | 35.5 | 8.5 |
| 28 | 40 | 43.3 | 38.5 | 9 |
| 30 | 43 | 43.3 | 39 | 9 |
| 32 | 46 | 43.3 | 39 | 9 |
| 33 | 47 | 53.5 | 50.5 | 11.5 |
| 34 | 48 | 53.5 | 50.5 | 11.5 |
| 35 | 49 | 53.5 | 50.5 | 11.5 |
| 36 | 50 | 53.5 | 50.5 | 11.5 |
| 38 | 53 | 60.5 | 50.5 | 11.5 |
| 40 | 56 | 60.5 | 50.5 | 11.5 |
| 42 | 59 | 60.5 | 50.5 | 11.5 |
| 43 | 59 | 60.5 | 52.5 | 11.5 |
| 44 | 60 | 65.5 | 52.5 | 11.5 |
| 45 | 61 | 65.5 | 52.5 | 11.5 |
| 48 | 64 | 65.5 | 52.5 | 11.5 |
| 50 | 66 | 72.5 | 56.5 | 11.5 |
| 53 | 69 | / | / | / |
| 55 | 71 | 72.5 | 58.5 | 11.5 |
| 58 | 76 | / | / | / |
| 60 | 78 | 79.3 | 60.5 | 11.5 |
| 63 | 83 | / | / | / |
| 65 | 84 | 84.5 | 62.5 | 11.5 |
| 68 | 88 | / | / | / |
| 70 | 90 | 89.5 | 62.5 | 11.5 |
| 75 | 98 | 94.5 | 68.5 | 11.5 |
| 80 | 100 | 99.5 | 70.5 | 11.5 |
WM 551 Mechanical-Product Number

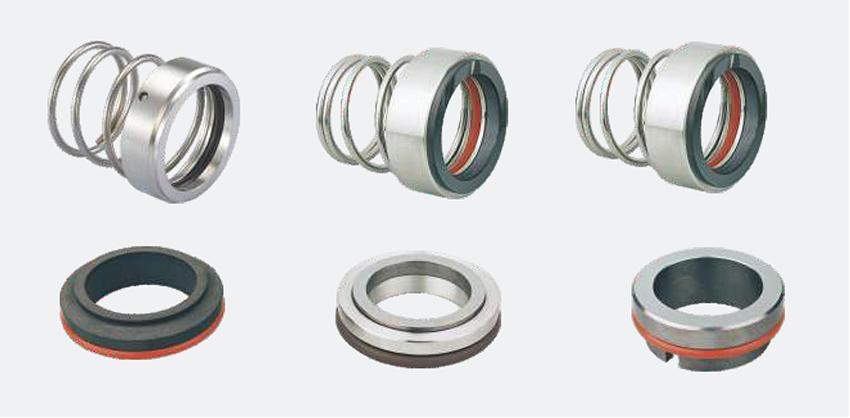

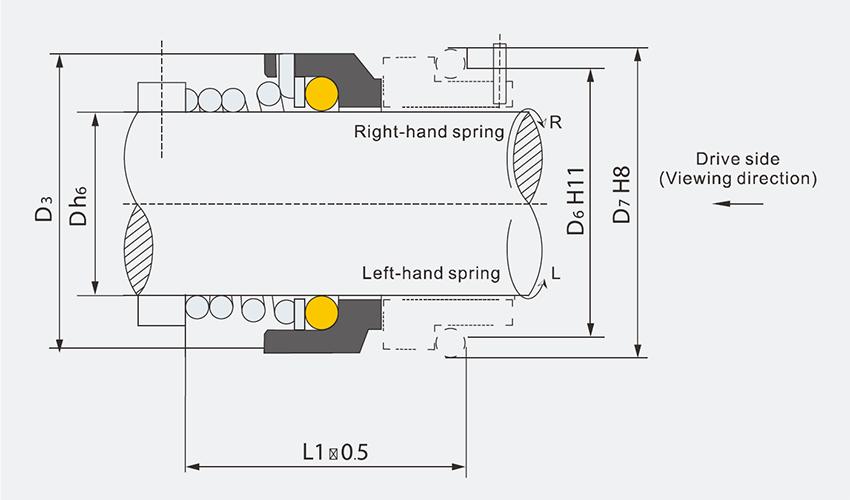

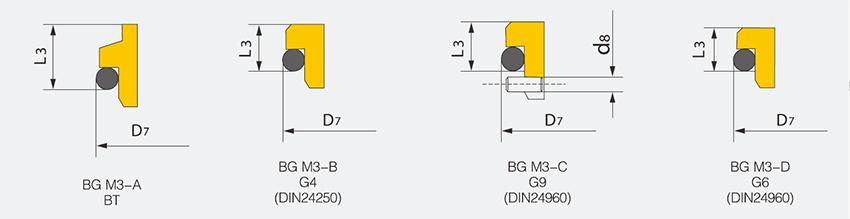

Product Specifications
WM 551 Mechanical-Product Specifications
WM 551 Mechanical-Product Specifications
WM 551 Mechanical-Product Specifications
Factory
 Warehouse |  Installation workshop |
 Product packaging |  Ceramic grinding |
Certificate
 |  |  |
 |  |  |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a manufacturer.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xingtai City, closed to Beijing You can fly to Beijing or Shijiazhuang airport directly. All our clients are warmly welcome to visit us!
3. Q: What is the payment term?
A: We accept T/T, Western Union, Alibaba as your convinence.
4. Q: What is the delivery term?
A: If we have stock, we can ship within three working days. If there is no stock, it will take about a week to deliver.
5. Q: Could you offer sample?
A: Yes, we can offer you free sample.
