58U
WM
Product Description
| Specification | WM 59U/58U-14~WM 59U/58U-100 |
| Pressure | ≤6.0Mpa |
| Temperature | -20℃~200℃ |
| Linear speed | ≤ 20m/s |
| Axial movement | 0.5mm |
| Profile | single seal/unbalances/independent of direction of rotation/To EN12756(DIN24960) |

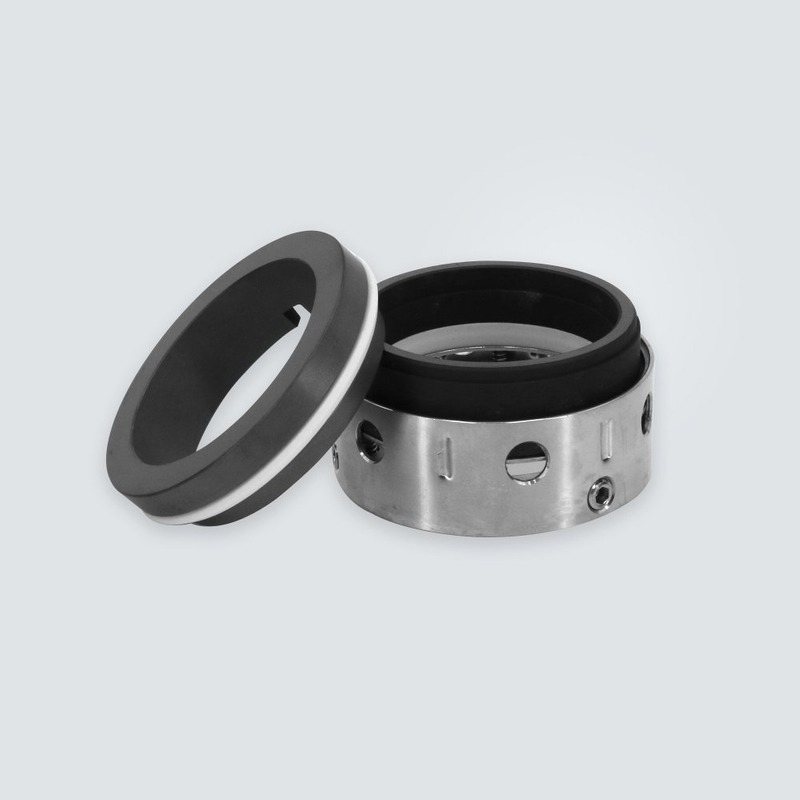

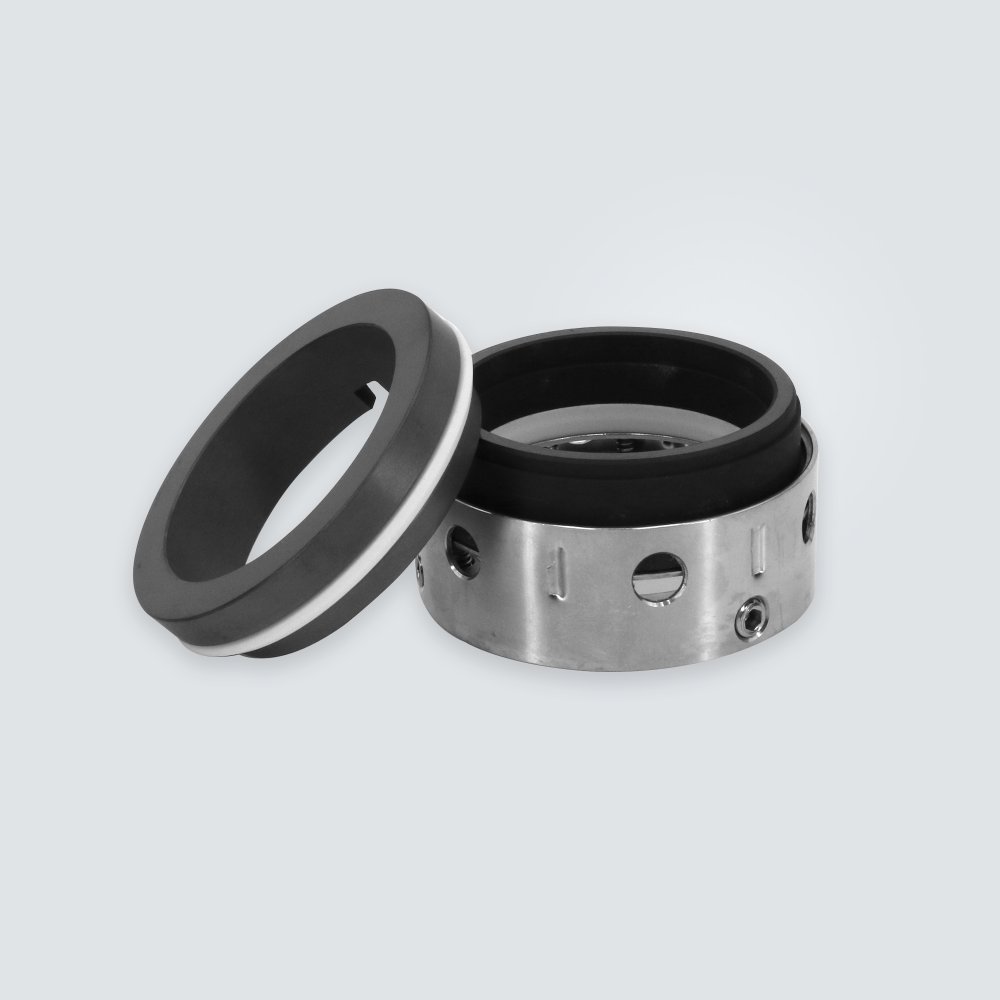

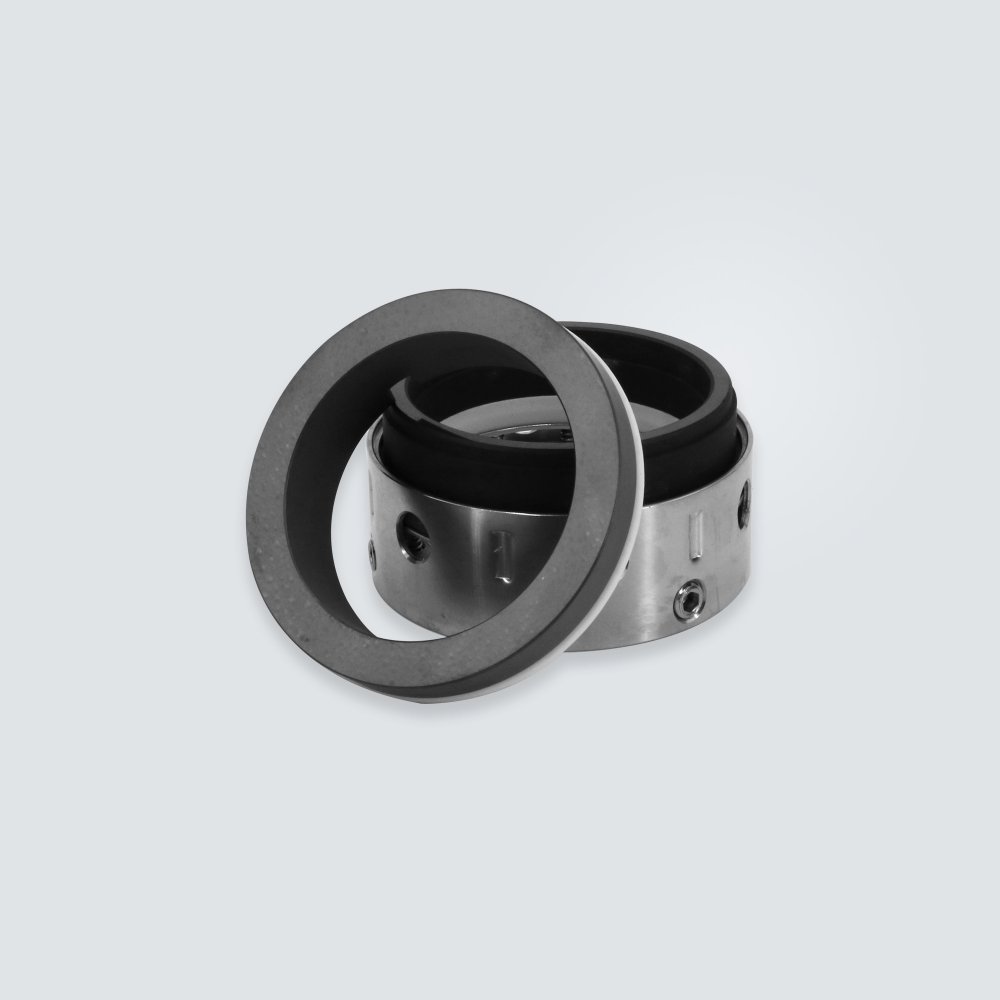

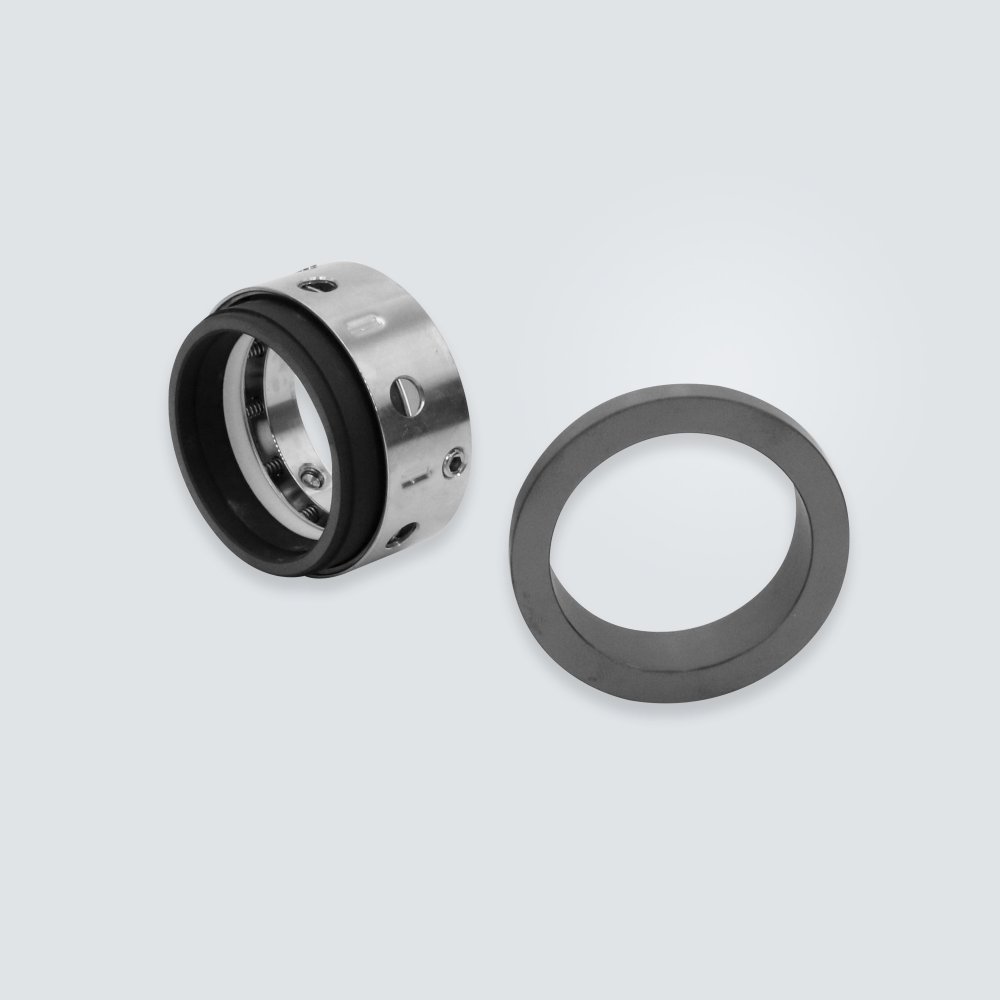

| This series mechanical seal is designed with multi spring structure,and is compact in structure,it's has a small axial size and reliale tightness.it's widely used in oil,water,organic solvent,and other weak corrosive medium. | |
| Combination of material | Sealing face:graphite,silicon carbide,tungsten carbide,aluminum oxide |
| Secondary sealing:acrylonitrile rubber,fluorine rubber,ethylene propylene rubber,PTFE | |
| Metal component:stainless steel,SUS304,SUS316L |
Product Number
| Model | D1 | D3 | D4 | D6 | D7 | D8 | D35 | L | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 |
| WM58U/59U-14 | 14 | 24 | 26 | 21 | 25 | 2 | 6.5 | 35.0 | 23.0 | 12.0 | 1.5 | 4 | 8.5 | 12.5 | 4.0 | 18.0 |
| WM58U/59U-16 | 16 | 26 | 28 | 23 | 27 | 2 | 6.5 | 35.0 | 23.0 | 12.0 | 1.5 | 4 | 8.5 | 12.5 | 4.0 | 18.0 |
| WM58U/59U-18 | 18 | 32 | 34 | 27 | 35 | 3 | 6.5 | 37.5 | 24.0 | 13.5 | 2.0 | 5 | 9.0 | 14.5 | 5.0 | 20.0 |
| WM58U/59U-20 | 20 | 34 | 36 | 29 | 35 | 3 | 6.5 | 37.5 | 24.0 | 13.5 | 2.0 | 5 | 9.0 | 14.5 | 5.0 | 20.0 |
| WM58U/59U-22 | 22 | 36 | 38 | 31 | 37 | 3 | 6.5 | 37.5 | 24.0 | 13.5 | 2.0 | 5 | 9.0 | 14.5 | 5.7 | 20.0 |
| WM58U/59U-24 | 24 | 38 | 40 | 33 | 39 | 3 | 6.5 | 40.0 | 26.7 | 13.3 | 2.0 | 5 | 9.0 | 14.5 | 5.0 | 19.8 |
| WM58U/59U-25 | 25 | 39 | 41 | 34 | 40 | 3 | 6.5 | 40.0 | 27.0 | 13.0 | 2.0 | 5 | 9.0 | 14.0 | 7.5 | 19.5 |
| WM58U/59U-28 | 28 | 42 | 44 | 37 | 43 | 3 | 6.5 | 42.5 | 30.0 | 12.5 | 2.0 | 5 | 9.0 | 13.5 | 7.5 | 19.0 |
| WM58U/59U-30 | 30 | 44 | 46 | 39 | 45 | 3 | 6.5 | 42.5 | 30.5 | 12.0 | 2.0 | 5 | 9.0 | 13.0 | 7.5 | 8.5 |
| WM58U/59U-32 | 32 | 46 | 48 | 42 | 48 | 3 | 6.5 | 42.5 | 30.5 | 12.0 | 2.0 | 5 | 9.0 | 13.0 | 6.5 | 8.5 |
| WM58U/59U-33 | 33 | 47 | 49 | 42 | 48 | 3 | 6.5 | 42.5 | 30.5 | 12.0 | 2.0 | 5 | 9.0 | 13.0 | 6.5 | 8.5 |
| WM58U/59U-35 | 35 | 49 | 51 | 44 | 50 | 3 | 6.5 | 42.5 | 30.5 | 12.0 | 2.0 | 5 | 9.0 | 13.0 | 8.0 | 8.5 |
| WM58U/59U-38 | 38 | 54 | 58 | 49 | 56 | 4 | 6.5 | 45.0 | 32.0 | 13.0 | 2.0 | 6 | 9.0 | 14.0 | 8.0 | 19.5 |
| WM58U/59U-40 | 40 | 56 | 60 | 51 | 58 | 4 | 6.5 | 45.0 | 32.0 | 13.0 | 2.0 | 6 | 9.0 | 14.0 | 8.0 | 19.5 |
| WM58U/59U-43 | 43 | 50 | 63 | 54 | 61 | 4 | 6.5 | 45.0 | 32.0 | 13.0 | 2.0 | 6 | 9.0 | 14.0 | 8.0 | 19.5 |
| WM58U/59U-45 | 45 | 61 | 65 | 56 | 63 | 4 | 6.5 | 45.0 | 32.0 | 13.0 | 2.0 | 6 | 9.0 | 14.0 | 5.5 | 19.5 |
| WM58U/59U-48 | 48 | 64 | 68 | 59 | 66 | 4 | 6.5 | 45.0 | 32.0 | 13.5 | 2.5 | 6 | 9.0 | 14.0 | 5.5 | 19.5 |
| WM58U/59U-50 | 50 | 66 | 70 | 62 | 70 | 4 | 6.5 | 47.5 | 34.0 | 13.5 | 2.5 | 6 | 9.0 | 14.0 | 5.5 | 20.0 |
| WM58U/59U-53 | 53 | 69 | 73 | 65 | 73 | 4 | 6.5 | 47.5 | 34.0 | 13.5 | 2.5 | 6 | 9.0 | 14.5 | 5.5 | 20.0 |
| WM58U/59U-55 | 55 | 71 | 75 | 67 | 75 | 4 | 6.5 | 47.5 | 34.0 | 13.5 | 2.5 | 6 | 9.0 | 14.5 | 7.5 | 20.0 |
| WM58U/59U-58 | 58 | 78 | 83 | 90 | 78 | 4 | 6.5 | 52.5 | 39.0 | 13.5 | 2.5 | 6 | 9.0 | 14.5 | 7.5 | 20.0 |
| WM58U/59U-60 | 60 | 80 | 85 | 72 | 80 | 4 | 6.5 | 52.5 | 39.0 | 13.5 | 2.5 | 6 | 9.0 | 14.5 | 7.5 | 20.0 |
| WM58U/59U-63 | 63 | 83 | 88 | 75 | 83 | 4 | 6.5 | 52.5 | 39.0 | 13.5 | 2.5 | 6 | 9.0 | 14.5 | 7.5 | 20.0 |
| WM58U/59U-65 | 65 | 85 | 90 | 77 | 85 | 4 | 6.5 | 52.5 | 39.0 | 13.5 | 2.5 | 6 | 9.0 | 14.2 | 7.5 | 20.0 |
| WM58U/59U-68 | 68 | 88 | 93 | 81 | 90 | 4 | 6.5 | 52.0 | 39.0 | 13.5 | 2.5 | 6 | 9.0 | 14.2 | 7.5 | 20.0 |
| WM58U/59U-70 | 70 | 90 | 95 | 93 | 92 | 4 | 6.5 | 60.0 | 45.5 | 14.5 | 2.5 | 7 | 9.0 | 15.2 | 7.5 | 20.0 |
| WM58U/59U-75 | 75 | 95 | 104 | 88 | 97 | 4 | 6.5 | 60.0 | 45.5 | 14.5 | 3.0 | 7 | 9.0 | 15.2 | 7.8 | 21.0 |
| WM58U/59U-80 | 80 | 104 | 109 | 95 | 105 | 4 | 9.5 | 60.0 | 45.5 | 15.5 | 3.0 | 7 | 9.0 | 15.7 | 7.8 | 21.0 |
| WM58U/59U-85 | 85 | 109 | 114 | 100 | 110 | 4 | 9.5 | 60.0 | 45.5 | 15.5 | 3.0 | 7 | 9.0 | 15.7 | 7.8 | 21.5 |
| WM58U/59U-90 | 90 | 114 | 112 | 105 | 115 | 4 | 9.5 | 65.0 | 50.0 | 15.0 | 3.0 | 7 | 9.0 | 15.7 | 7.8 | 21.5 |
| WM58U/59U-95 | 95 | 119 | 124 | 110 | 120 | 4 | 9.5 | 65.0 | 50.0 | 15.5 | 3.0 | 7 | 9.0 | 15.7 | 7.8 | 21.5 |
| WM58U/59U-100 | 100 | 124 | 129 | 115 | 125 | 4 | 9.5 | 65.0 | 50.0 | 15.0 | 3.0 | 7 | 9.0 | 15.7 | 7.8 | 21.5 |
Product Specifications
WM 58U Mechanical-Product Specifications
Factory
 Warehouse |  Installation workshop |
 Product packaging |  Ceramic grinding |
Certificate
 |  |  |
 |  |  |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a manufacturer.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xingtai City, closed to Beijing You can fly to Beijing or Shijiazhuang airport directly. All our clients are warmly welcome to visit us!
3. Q: What is the payment term?
A: We accept T/T, Western Union, Alibaba as your convinence.
4. Q: What is the delivery term?
A: If we have stock, we can ship within three working days. If there is no stock, it will take about a week to deliver.
5. Q: Could you offer sample?
A: Yes, we can offer you free sample.
