M7N
WM
Product Description
| Style | Mechanical seal |
| Standarsd or Nostandard | Standard |
| Temperature | -40℃~150℃ |
| Pressure | ≤1.6Mpa |
| Speeds | ≤ 13m/sec |
| Rotary ring | SIC/Inserted TC |
| Stationary ring | Carbon/SIC/Inserted TC |
| Secondary seal | V |
| Spring&Other parts | SUS304 |
| OEM | yes |
| Custom products | Accept custom |
| Sample | yes |
Product Number
| Seal size d（mm） | d3 | d6 | d7 | L1 | L3 | f |
| WM M7N-14 | 25 | 21 | 25 | 35 | 10 | 6 |
| WM M7N-16 | 27 | 23 | 27 | 35 | 10 | 6 |
| WM M7N-18 | 33 | 27 | 33 | 37.5 | 11.5 | 7 |
| WM M7N-20 | 35 | 29 | 35 | 37.5 | 11.5 | 7 |
| WM M7N-22 | 37 | 31 | 37 | 37.5 | 11.5 | 7 |
| WM M7N-24 | 39 | 33 | 39 | 40 | 11.5 | 8 |
| WM M7N-25 | 40 | 34 | 40 | 40 | 11.5 | 8 |
| WM M7N-28 | 43 | 37 | 43 | 42.5 | 11.5 | 8 |
| WM M7N-30 | 45 | 39 | 45 | 42.5 | 11.5 | 8 |
| WM M7N-32 | 47 | 42 | 48 | 42.5 | 11.5 | 8 |
| WM M7N-33 | 48 | 42 | 48 | 42.5 | 11.5 | 8 |
| WM M7N-35 | 50 | 44 | 50 | 42.5 | 11.5 | 8 |
| WM M7N-38 | 55 | 49 | 56 | 45 | 14 | 8 |
| WM M7N-40 | 57 | 51 | 58 | 45 | 14 | 8 |
| WM M7N-43 | 60 | 54 | 61 | 45 | 14 | 8 |
| WM M7N-45 | 62 | 56 | 63 | 45 | 14 | 8 |
| WM M7N-48 | 65 | 59 | 66 | 45 | 14 | 8 |
| WM M7N-50 | 67 | 62 | 70 | 47.5 | 15 | 8 |
| WM M7N-53 | 70 | 65 | 73 | 47.5 | 15 | 8 |
| WM M7N-55 | 72 | 67 | 75 | 47.5 | 15 | 8 |
| WM M7N-58 | 79 | 70 | 78 | 52.5 | 15 | 9 |
| WM M7N-60 | 81 | 72 | 80 | 52.5 | 15 | 9 |
| WM M7N-63 | 84 | 75 | 83 | 52.5 | 15 | 9 |
| WM M7N-65 | 86 | 77 | 85 | 52.5 | 15 | 9 |
| WM M7N-68 | 89 | 81 | 90 | 52.5 | 18 | 9 |
| WM M7N-70 | 91 | 83 | 92 | 60 | 18 | 9 |
| WM M7N-75 | 99 | 88 | 97 | 60 | 18 | 10 |
| WM M7N-80 | 104 | 95 | 105 | 60 | 18.2 | 10 |
| WM M7N-85 | 109 | 100 | 110 | 60 | 18.2 | 10 |
| WM M7N-90 | 114 | 105 | 115 | 65 | 18.2 | 10 |
| WM M7N-95 | 119 | 110 | 120 | 65 | 17.2 | 10 |
| WM M7N-100 | 124 | 115 | 125 | 65 | 17.2 | 10 |
Product Specifications

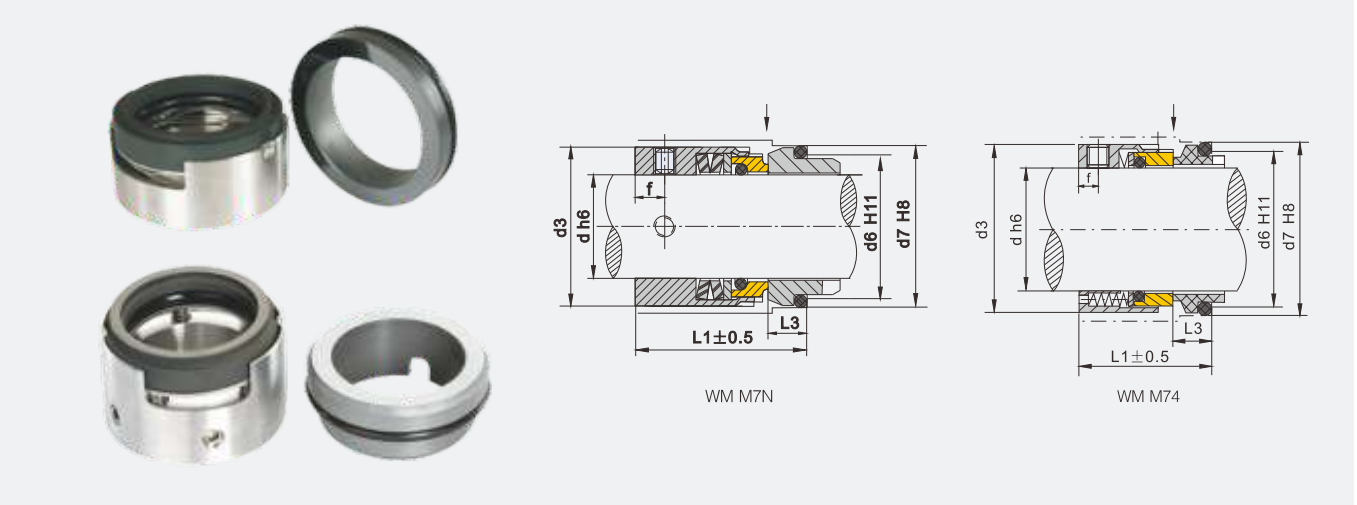

WM M7N Mechanical-Product Specifications
Factory
 Warehouse |  Installation workshop |
 Product packaging |  Ceramic grinding |
Certificate
 |  |  |
 |  |  |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a manufacturer.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xingtai City, closed to Beijing You can fly to Beijing or Shijiazhuang airport directly. All our clients are warmly welcome to visit us!
3. Q: What is the payment term?
A: We accept T/T, Western Union, Alibaba as your convinence.
4. Q: What is the delivery term?
A: If we have stock, we can ship within three working days. If there is no stock, it will take about a week to deliver.
5. Q: Could you offer sample?
A: Yes, we can offer you free sample.
